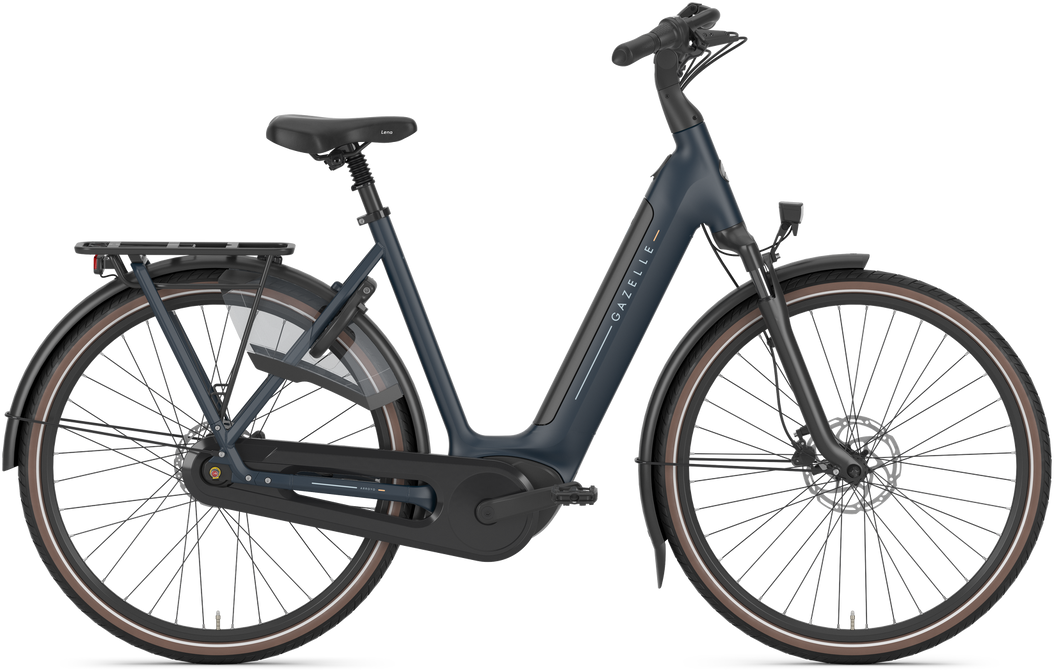

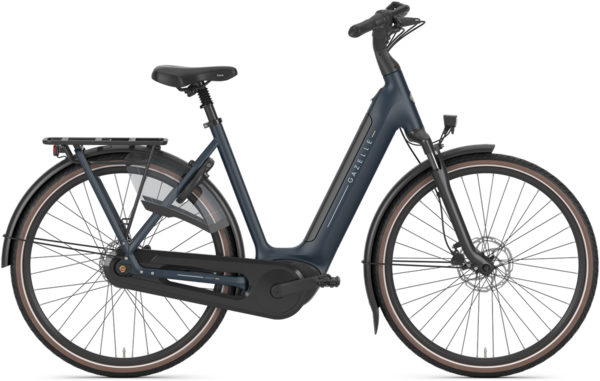

Gazelle Bikes Arroyo C8 Elite

Gazelle Bikes Arroyo C8 Elite
  • Color: Between Blue
  • Color: Light Olive
$3,499.99
Color:
Size: Select size
Wheel Size: 28-inch
Please select options Unavailable

Details

Go out and enjoy. With the Arroyo C8 Elite, every ride is comfortable: upright cycling, smooth support, and easy mounting. The extra attention to the integration of the battery and cables gives the Arroyo an elegant appearance.

Frame SizeSmall (46cm)Medium (53cm)Large (57cm)
Seat Tube Length (mm / in) 460 / 18.1 530 / 20.9 570 / 22.4
Effective Top Tube Length (mm / in) 570 / 22.4 583 / 23.0 605 / 23.8
Head Tube Angle (degree) 68.5 68.5 68.5
Effective Seat Tube Angle (degree) 69.5 69.5 69.5
Chainstay Length (mm / in) 485 / 19.1 485 / 19.1 485 / 19.1
Bottom Bracket Drop (mm / in) 60 / 2.4 60 / 2.4 60 / 2.4
Head Tube Length (mm / in) 145 / 5.7 165 / 6.5 165 / 6.5
Fork Length (mm / in) 475 / 18.7 475 / 18.7 475 / 18.7
Fork Offset (mm / in) 55 / 2.2 55 / 2.2 55 / 2.2
Wheelbase (mm / in) 1077 / 42.4 1100 / 43.3 1131 / 44.5
Stack (mm / in) 602 / 23.7 610 / 24.0 610 / 24.0
Reach (mm / in) 339 / 13.3 351 / 13.8 366 / 14.4
Frame SizeSmall (46cm)Medium (53cm)Large (57cm)
Rider Height (ft / in) 4'10" - 5'6" 5'6" - 5'10" 5'10" - 6'3"
Rider Height (cm) 147 - 168 168 - 178 178 - 191

Specs

Frame Stable, lightweight hydro-formed aluminium frame with 68.5° headset angle and 69.5° seat tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables
Fork Gazelle Telescopic, spiral spring, 40mm travel
Rims Ryde ZAC 421
Hubs Front: Shimano
Rear: Shimano Nexus 8 speed internal gear hub
Tires Schwalbe Energizer Active Plus, 28"
Chainrings 38T
Shifters Shimano Nexus 8
Rear Derailleur Shimano Nexus 8
Cassette/Freewheel 18T
Chain KMC X8
Brakes Tektro HD-T280 hydraulic disc brake
Rotors Front: 180mm, Rear: 160mm
Brake Levers Tektro
Handlebars Aluminium, comfort curved model
Tape/Grips Gazelle Aerowing, plastic wear-resistant handlebar grips for a firm grasp
Saddle Selle Royal Lena
Accessories & Extras E-bike walk assist
AXA NXT 60 front light
Spanninga Solo rear light
Motor Bosch Smart System Active Line Plus
Battery integrated in the frame
Controller/Display Bosch Purion 200 LCD color
Charger Bosch Compact Charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Between Blue / 46cm / 28-inch 8717231370896 BGA0037 BGA0037
Between Blue / 53cm / 28-inch 8717231370902 BGA0039
Between Blue / 57cm / 28-inch 8717231370919 BGA0040
Light Olive / 46cm / 28-inch 8717231370926 BGA0043
Light Olive / 53cm / 28-inch 8717231370933 BGA0045
Light Olive / 57cm / 28-inch 8717231370940 BGA0046
