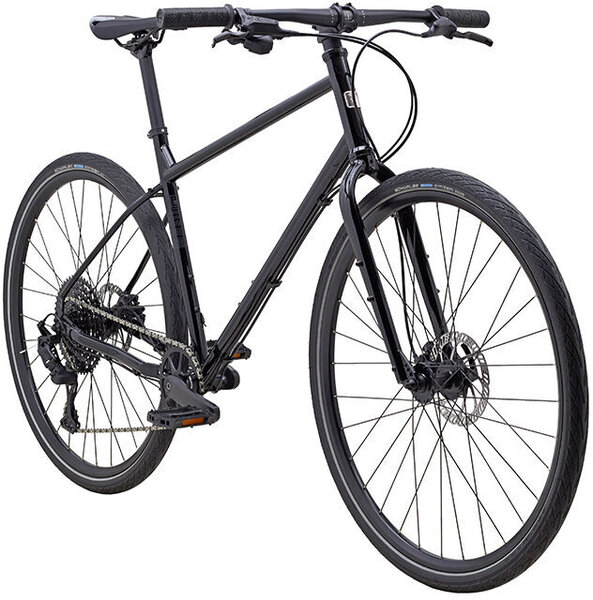

Marin Muirwoods - 2022

Marin Muirwoods
  • Color: Gloss Black/Reflective Black
$899.99
$999.99
Color:
Gloss Black/Reflective Black
Please select options

Details

Get in car. Cough. Engine. Reverse. Drive. Lights. Drive. Traffic. Drive. Traffic again. Drive. Pedestrian crossing. Drive. Hot, A/C. Drive. Lights. Drive. Miss turning. Stop. 180. Drive. Shouty person. Drive. Lights. Nearly there, come on. Drive. Can't park. Gas station. Refuel. Pay. Ouch. Drive home. Pay parking fine.

Get on bike. Hit the pedals. Drop the curb. Sprint. Up the bank. Pump for speed. Nail the turn. Left/right. Back onto road. Spin the legs. Lights. Breathe. On the power. A breeze. Wave to the person with the nice bike. Tuck for speed. A waft of coffee. Freewheel the long hill. Stop, pedestrian. Likes your bike. Smile. Pedal. Cruise the s-bends. Big phat skid. What a blast. Repeat?

Travel the fun way with the new Marin Muirwoods.

Modern transport for the urban jungle and countryside adventures.

Boasting Two-Wheel Technology for a fast, safe, and clean journey.

Innovative features include:

- Zero emissions
- Dual-piston motor
- Food-based energy
- Built-in entertainment
- Air conditioning
- EasyParking™
- 1 hp
- Unlimited range
- Superduperchargers at all cafés worldwide
- Zero to smile in 0.001s

Other features include:

- Elegant steel tubing
- Powerful disc brakes
- Front and rear storage
- Puncture protection
- Around-town gearing
- Fender mounts
- Reflective frame and tire logos
- Honest pricing

The new Marin Muirwoods: Travel Made Fun.

Geometry

Geometry Chart:
SizeX-SmallSmallMediumLargeX-Large
A STACK (mm) 561.7 580.2 598.6 617.1 635.6
B REACH (mm) 375 400 425 450 475
C HEADTUBE ANGLE 67.5° 67.5° 67.5° 67.5° 67.5°
D HEADTUBE LENGTH (mm) 130 150 170 190 210
E SEATTUBE ANGLE 74° 74° 74° 74° 74°
F SEATTUBE LENGTH (mm) 380 420 460 500 530
G TOPTUBE EFFECTIVE (mm) 536 566.4 596.7 627 657.3
H BB HEIGHT (mm) 289.5 289.5 289.5 289.5 289.5
I BB DROP (mm) 75 75 75 75 75
J CHAINSTAY (mm) 430 430 430 430 430
K WHEELBASE (mm) 1055.2 1087.85 1120.5 1153.16 1185.81
L STANDOVER HEIGHT (mm) 633 672 703 731 751
M FORK OFFSET (mm) 45 45 45 45 45
SEATPOST DIAMETER (mm) 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (mm) 680 680 680 700 700
STEM LENGTH (mm) 45 45 45 45 45
CRANK LENGTH (mm) 170 170 175 175 175
Sizes:
SizeRider height range
X-Small 4'11" to 5'2"
Small 5'2" to 5'6"
Medium 5'6" to 5'10"
Large 5'10" to 6'2"
X-Large 6'2" to 6'4"

Specs

Frame Series 1 Butted CrMo, 29" Wheels, Integrated Headset, Disc Brake, Fender and Rack Mounts
Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Rims Marin Aluminum, Double Wall, Disc Specific
Hubs Forged Aluminum Alloy, Disc, 32H
Spokes 14g Black Stainless Steel
Tires Schwalbe Citizen, 700x42
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Crankset Forged Alloy Crank, Steel Narrow Wide 38T Chainring
Shifters MicroSHIFT Advent X 10-Speed Trail
Rear Derailleur MicroSHIFT Advent X 10-Speed
Cassette/Freewheel SunRace 10-Speed, 11-51T
Chain KMC X10
Brakes Tektro M275 Hydraulic Disc, 180mm Rotor [F] 160mm [R]
Brake Levers Tektro M275 Hydraulic Disc
Handlebars Marin Alloy Mini Riser
Tape/Grips Marin Custom
Stem Marin Alloy, 31.8mm Clamp
Headset FSA No.8B, Sealed Cartridge Bearings
Seatpost Marin Alloy, 27.2mm
Saddle Marin MTB
Pedals Commute Platform

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Black/Reflective Black / X-Small 843346114921 733964001
Gloss Black/Reflective Black / Small 843346114938 733964002 733964002
Gloss Black/Reflective Black / Medium 843346114945 733964003 733964003
Gloss Black/Reflective Black / Large 843346114952 733964004 733964004
Gloss Black/Reflective Black / X-Large 843346114969 733964005 733964005
