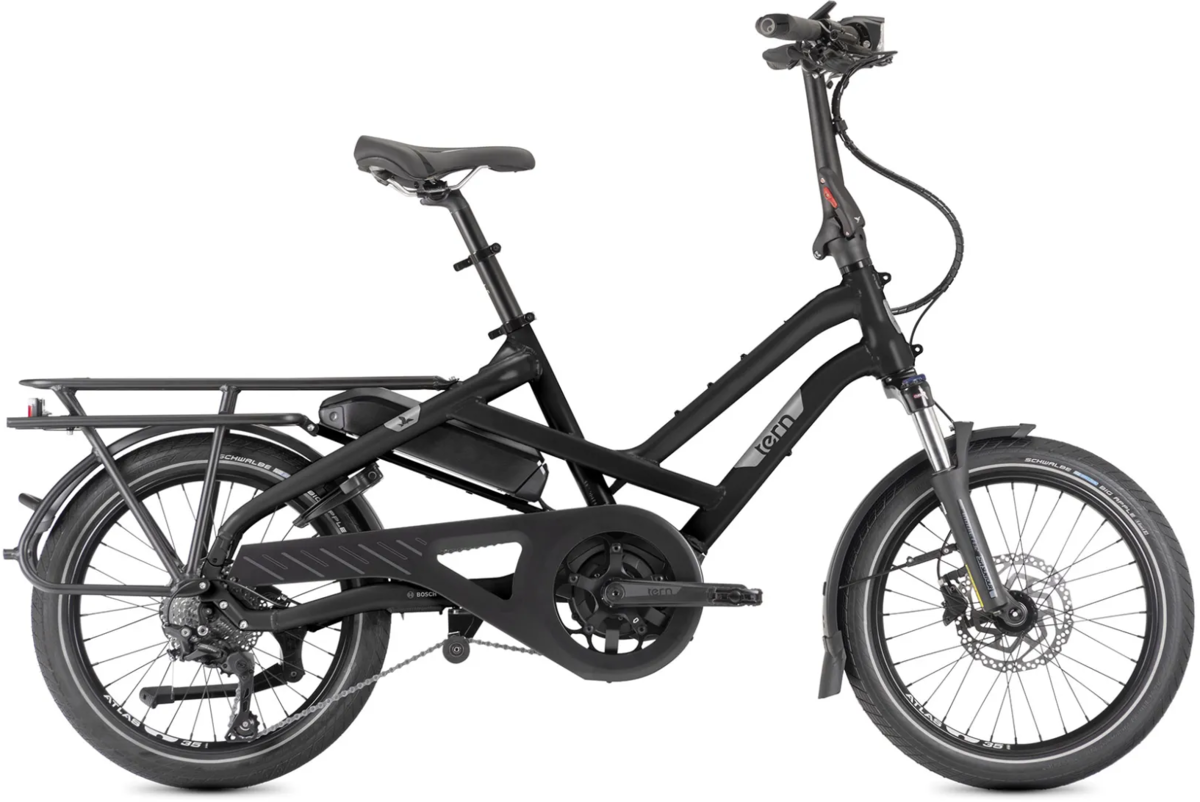

Tern HSD P10

Tern HSD P10
  • Color: Black
  • Color: Orange
$3,899.00
Color:
Size: One Size
Wheel Size: 20-Inch
Please select options Unavailable
Please call one of our locations for current stock status regarding this item, we may be able to special order it. Thank You!

Details

What makes it a P10?
- Class 1 Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- 1x10-speed Shimano Deore groupset with trigger shifter

HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight

Specs

Frame Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Wheels Tern Atlas H, cargo wheel
Hubs Front: Novatec, Thru-axle, sealed bearings
Rear: Novatec, sealed cartridge bearing, disc
Tires Schwalbe Big Apple, 55-406, puncture protection, Reflex
Bottom Bracket Motor integrated
Crankset Tern HSD custom
Shifters Shimano Deore, 1 x 10 spd, trigger
Rear Derailleur Shimano Deore Shadow+
Cassette/Freewheel Shimano 11-36T, 10 spd
Brakes Front: Tektro, hydraulic disc, 180 mm rotor
Rear: Tektro, hydraulic disc, 160 mm rotor
Brake Levers Tektro, hydraulic disc
Handlebars Tern Sweep, 6061-AL, Tern Andros adapted
Tape/Grips Ergon
Stem Tern Andros, adjustable, forged construction, patented technology
Headset Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Seatpost Tern Telescope, 34.9/30.9 mm, 2014-AL
Saddle Tern Upright by Velo
Pedals Urban with non-slip surface
Motor Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery Bosch PowerPack 545
Controller/Display Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Charger 220V, 4A (EU); 100-240V, 4A (US)

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black / One Size / 20-Inch 810067161312 12-91-80
Orange / One Size / 20-Inch 810067161336 12-91-81
