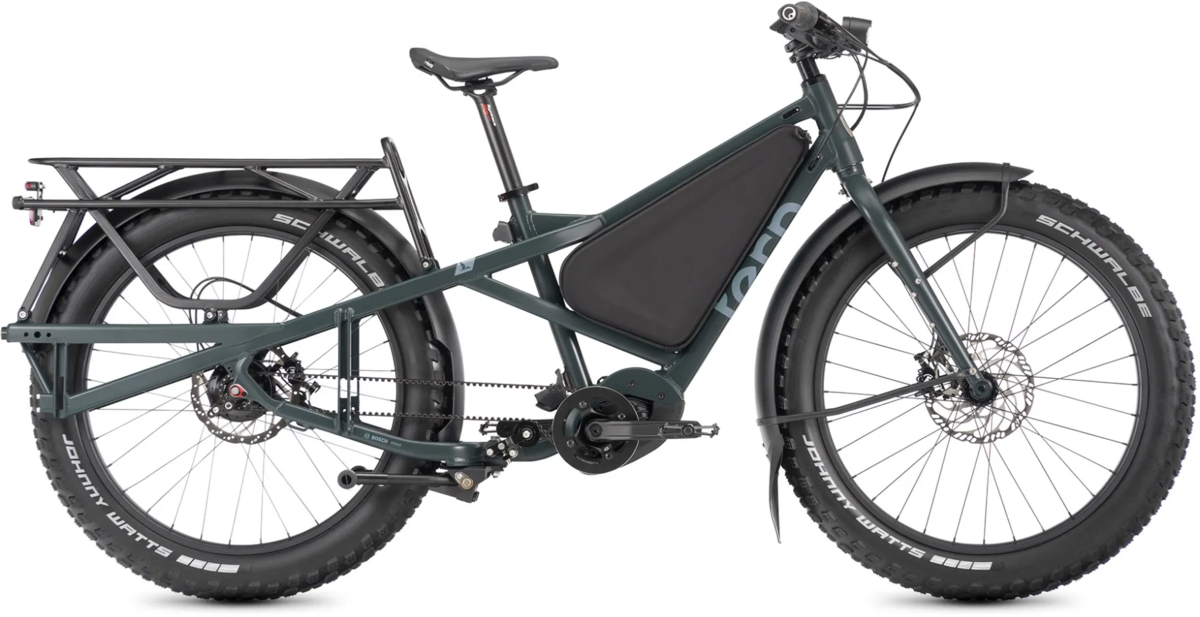

Tern Orox R14

Tern Orox R14
  • Color: Granite
$8,249.00
Color: Granite
Size: Select size
Wheel Size: 27.5-Inch
Please select options Unavailable
Please call one of our locations for current stock status regarding this item, we may be able to special order it. Thank You!

Details

What makes it an R14?
- Highly-durable and virtually maintenance-free Rohloff Speedhub
- Silent, smooth, and rust & grease-free Gates Belt Drive
- Custom 27.5" Schwalbe Johnny Watts all-terrain tires with optimized tread take on even the toughest conditions
Orox highlights
- Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
- Dual-battery system draws from up to two batteries for ultra-long range
- Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
- Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
- Powerful and responsive Magura 4-piston hydraulic brakes
- EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
- Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

Specs

Frame Tern Orox, 6061-AL, patented design, EFBE tested and approved
Fork Atlas X, butted chromoly steel, EFBE tested and approved
Wheels Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
Rims Tern Atlas X, custom doublewall construction
Hubs Front: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
Rear: Rohloff, 526% range, Boost
Tires Schwalbe Johnny Watts 27.5" x 4"
Crankset Tern Orox custom, Gates CDX CNC machined beltring
Shifters Rohloff, Twist
Brakes Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Brake Levers Magura MT5, hydraulic
Handlebars Level Nine, AL-7050, 800 mm, riser, eMTB approved
Tape/Grips Ergon
Stem Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Headset FSA, 1.5", angular contact bearings
Seatpost Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Saddle Ergon SM, E-Mountain Sport, CrMo Rail
Pedals MTB, non-slip
Motor Bosch Performance CX, max speed 20 mph (US)
Battery 800 Wh, Bosch Dual Battery pack ready
Controller/Display Bosch Kiox 300 w/ LED remote, electronic bike lock
Charger 100-240V, 4A (US)

* Subject to change without notice.

Part Numbers

Option UPC MPN
Granite / Medium / 27.5-Inch 810067161671 18-9-11
Granite / Large / 27.5-Inch 810067161725 18-9-12
