Details

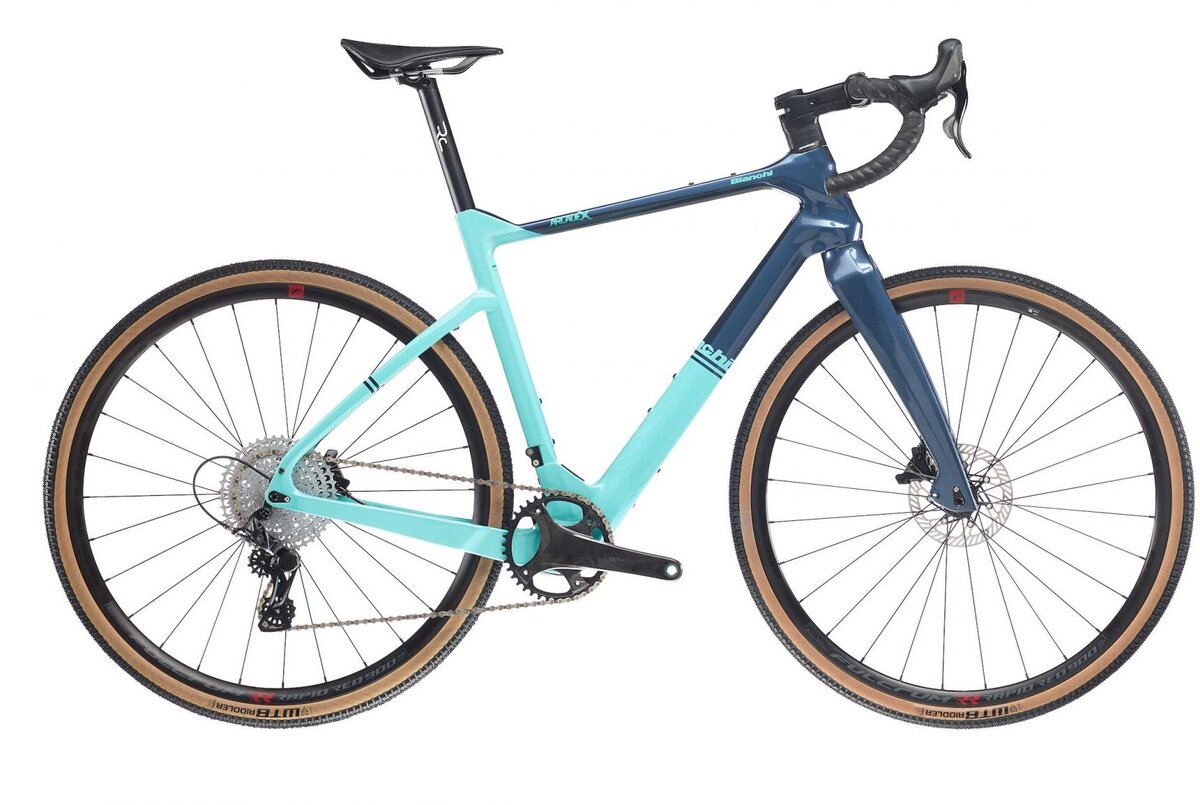

The Arcadex gravel bike perfectly combines an emotional communion with nature, and the exhilarating rush of Bianchi racing DNA. It delivers distinct performance for the modern gravel rider.
Specs
Frame | Arcadex carbon, seat post 31.6mm, thru axle 12x142mm, flat mount disc , pressfit 41 , compatible with 42mm tire and mudguard |
---|---|
Fork | Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm |
Headset | FSA SMR HS with 1-1/8” custom top cone Bianchi |
Rims/Wheels | Fulcrum Rapid Red 900 DB 2WF-R C22 AFS, alloy, 2-Way fit Ready, rim profile 24mm, width 27,1mm, 28 spokes, HH12- rear HH12/142 N3W |
Tires | WTB Riddler Race 700 x 37c, Dual DNA Compound, 60tpi Casing |
Crankset | FSA Gossamer Pro 40T 1x13 C, Crank Length: 170mm-XS-S, 172.5mm-M-L |
Bottom Bracket | Fsa BB-CF86/CZ Stainless bearing for Road carbon / alloy MegaExo crankset Press-Fit 86,5x41 |
Chain | Campagnolo EKAR 1x13 |
Rear Derailleur | Campagnolo EKAR 1x13sp |
Rear Cogs | Campagnolo EKAR 13s 10-44T |
Shifters | Campagnolo EKAR |
Handlebars | Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm=XS/S - 42cm=M/L |
Stem | Reparto Corse, Alloy 6061 , 1 1/4", raise 0°,Oversize, plastic adaptor for hose cover 1 1/4", finish black; Ext: 80mm-XS -S, 100mm-M |
Brakes | Campagnolo included in the shifter, Campagnolo Rotor, AFS 160mm |
Saddle | Selle Italia ModelX Superflow FeC, lenght/wide 245x145mm |
Seat Post | Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, 350mm/S-M |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
CK16/BLUE NOTE / Small | YSBX1ISMGX | YSBX1ISMGX |
CK16/BLUE NOTE / Medium | YSBX1IMDGX | YSBX1IMDGX |
