Details

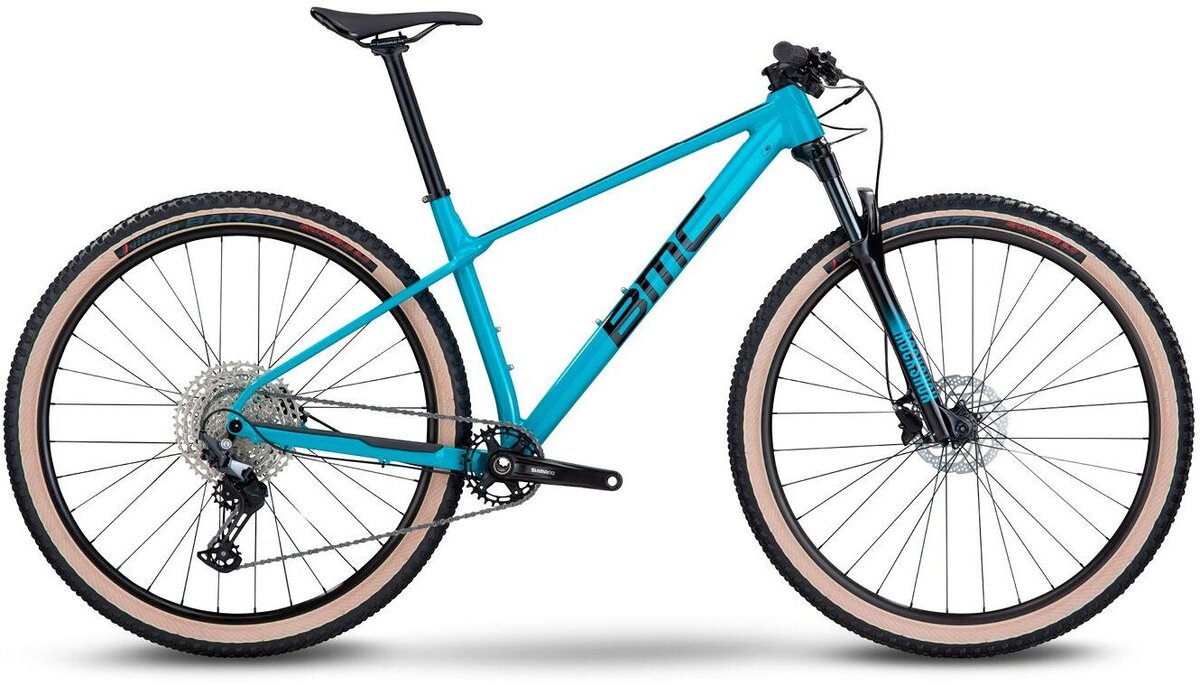

Twostroke AL emulates the Twostroke 01's performance in a refined Smoothweld Premium Aluminum frame. Inspired by the Fourstroke and a fighter jet, it offers the perfect blend of performance, functionality and aesthetics, with radical geometry, wide tire clearance and integrated protection to combat technical terrain. SRAM NX and SX Eagle drivetrain with SRAM Level T brakes, XCD23 wheels and RockShox Judy Silver fork make a well-rounded package.
Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
Rider Height CM | <170 | 170-182 | 180-192 | >190 |
Stack MM | 588 | 598 | 608 | 623 |
Reach MM (reach) | 422.5 | 445 | 465 | 485 |
Seat Tube MM (st) | 410 | 440 | 480 | 510 |
Top Tube MM (tt) | 597 | 618 | 638 | 658 |
Head Tube MM (ht) | 87 | 93.5 | 106 | 122.5 |
Seat Tube Angle (sa) | 75 | 75 | 75 | 75 |
Head Angle (ha) | 67 | 67 | 67 | 67 |
Rear Center MM (rc) | 425 | 425 | 425 | 425 |
Front Center MM (fc) | 696 | 715 | 741 | 767 |
Wheelbase MM (wb) | 1112.5 | 1135 | 1161 | 1185 |
BB Drop MM (drop) | 64 | 64 | 64 | 64 |
Fork Length MM (fl) | 505 | 505 | 505 | 505 |
Fork Rake MM (fr) | 44 | 44 | 44 | 44 |
Trail MM (trail) | 109 | 109 | 109 | 109 |
Crank Length MM | 170 | 175 | 175 | 175 |
Stem Length MM | 60 | 60 | 60 | 70 |
Bar Width MM | 750 | 750 | 750 | 750 |
Bar Rise MM | 4 | 4 | 4 | 4 |
Backsweep | 9 | 9 | 9 | 9 |
Standover Height mm | 725 | 730 | 735 | 750 |
Seatpost Length MM | 350 | 400 | 400 | 400 |
Specs
Frame | Twostroke AL Premium Aluminium Hydroformed, Smoothwelded, Internal Cable Routing, BSA Threaded Bottom Bracket, Post Mount Disc |
---|---|
Fork | Rockshox Judy Silver TK - PopLoc Remote |
Rims | XCD23 |
Hubs | SHIMANO MT400 |
Tires | Vittoria Barzo 2.25" |
Chainrings | SRAM NX Eagle 32T |
Shifters | SRAM SX Eagle |
Rear Derailleur | SRAM NX Eagle |
Cassette/Freewheel | SRAM SX Eagle 11-50T |
Chain | SRAM SX Eagle |
Brakes | SRAM Level T / SRAM Centerline Rotors (160/160 S-M - 180/160 L-XL) |
Handlebars | BMC MFB03 Alloy 750mm |
Stem | Forged 6061 Alloy |
Seatpost | BMC MSP03 - 31,6mm - 0mm Offset |
Saddle | Selle Royal Seta |
Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Turquoise/Black / Small | 07630027886665 | 30002620 | 30002620 |
Turquoise/Black / Medium | 07630027886658 | 30002621 | 30002621 |
Turquoise/Black / Large | 07630027886641 | 30002622 | 30002622 |
Turquoise/Black / X-Large | 07630027886733 | 30002623 | 30002623 |
