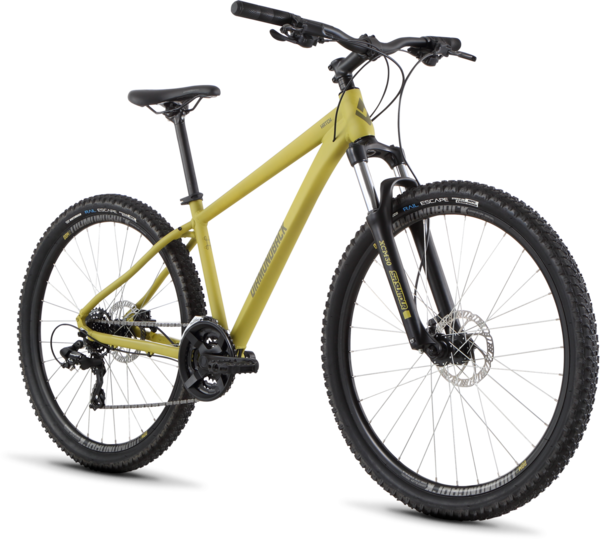

Diamondback Hatch 3 - 2023

Diamondback Hatch 3
  • Color: Mustard Matte
$539.99 - $774.99
$774.99
Color: Mustard Matte
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable

Details

Custom-formed aluminum frame features Progressive wheel sizing: 27.5" on XS, S and 29" on M, L, XL

SR Suntour XCM-DS fork offers 100mm of coil-sprung suspension to soak up bumps

- Shimano 3x7 speed drivetrain means you'll always find the perfect gear
- Tektro M275 hydraulic disc brakes provide great stopping power
- Pedals included; limited lifetime warranty on the frame for as long as the original retail purchaser owns the bicycle
- Included fender mounts allow you add fenders to ride in inclement weather

Sizes:
FRAME SIZEXS/14 (27.5) SM/15 (27.5) MD/17 (29) LG/19 (29) XL/21 (29)
Rider Height 5'1" - 5'4" 5'4" - 5'7" 5'7" - 5'10" 5'10" - 6'1" 6'1" - 6'4"
Bike Stand Over Height 720.0 mm 750.0 mm 785.0 mm 809.0 mm 844.0 mm
Bike Seat Tube Length 360.0 mm 400.0 mm 440.0 mm 480.0 mm 530.0 mm
Bike Top Tube Length 540.0 mm 565.0 mm 590.0 mm 615.0 mm 640.0 mm
Bike Head Tube Length 100.0 mm 110.0 mm 95.0 mm 110.0 mm 125.0 mm
Bike Head Angle 68.0 ° 68.0 ° 69.5 ° 69.5 ° 69.5 °
Bike Seat Angle 73.5 ° 73.5 ° 73.0 ° 73.0 ° 73.0 °
Bike Wheel Base 1050.0 mm 1075.0 mm 1097.0 mm 1124.0 mm 1150.0 mm
Bike Chain Stay Length 425.0 mm 425.0 mm 444.0 mm 444.0 mm 444.0 mm
Bike Fork Offset 42.0 mm 42.0 mm 46.0 mm 46.0 mm 46.0 mm
Bike Bb Height 305.0 mm 305.0 mm 310.0 mm 310.0 mm 310.0 mm
Bike Bb Drop 50.0 mm 50.0 mm 60.0 mm 60.0 mm 60.0 mm
Bike Stem Length 75.0 mm 90.0 mm 90.0 mm 105.0 mm 105.0 mm
Bike Handlebar Width 720.0 mm 720.0 mm 720.0 mm 720.0 mm 720.0 mm
Bike Crank Length 170.0 mm 170.0 mm 175.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 350.0 mm 350.0 mm 350.0 mm 350.0 mm 350.0 mm
Bike Stack 588.0 mm 597.0 mm 617.0 mm 631.0 mm 645.0 mm
Bike Reach 366.0 mm 388.0 mm 401.0 mm 422.0 mm 443.0 mm

Specs

Pedals Wellgo Plastic Body
Fork SR Suntour XCM-DS 100mm of Travel with Pre-Load Adjuster, for IS Post Mount Disc
Hubs Formula DC-20F, 6 Bolt, Disc, Quick Release|Formula DC-22-7R, 6 Bolt, Disc, Quick Release
Rims Aluminum MTB DDM-2 Double Wall, 32 hole, Not Taped
Stem Aluminum MTB 31.8 Bar Bore Stem
Chain KMC Z7
Frame Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
Tires Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25", Non Tubeless Tire
Brakes Tektro M275 IS Post Mount, Hydraulic with 160mm Rotors F/R
Saddle MTB Saddle
Spokes Stainless Steel
Headset 1-1/8" Semi Integrated Cartridge Bearing
Crankset Shimano Tourney TY301,42/34/24t
Seatpost Aluminum 27.2 Post with 15mm Offset
Shifters Shimano M310 3x7 Speed Rapid Fire Shifter
Handlebars Aluminum 31.8mm Bar, 25mm Rise
Tape/Grips MTB Grip
Brake Levers Tektro M275 Hydraulic
Bottom Bracket Sealed Cartridge Bearing
Rear Derailleur Shimano Tourney TX800
Front Derailleur Shimano Tourney TY500 Dual Pull
Accessories & Extras Rack, Fender and Bottle Mounts, Non Tubeless Compatible
Cassette/Freewheel Shimano GH20 Cassette, 7speed, 12-32 Tooth

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Mustard Matte / X-Small / 27.5-inch 791964601692 02-780-2350 02-780-2350
Mustard Matte / Small / 27.5-inch 791964601708 02-780-2351 02-780-2351
Mustard Matte / Medium / 29-inch 791964601715 02-780-2352
Mustard Matte / Large / 29-inch 791964601722 02-780-2353
Mustard Matte / X-Large / 29-inch 791964601739 02-780-2354
