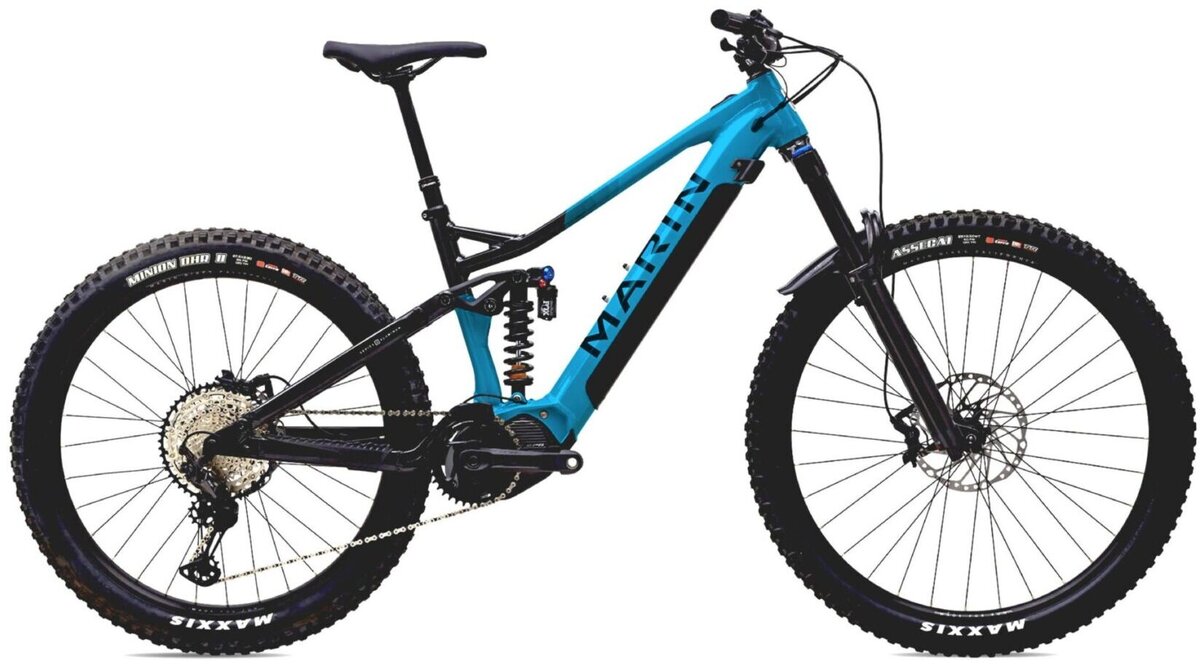

Marin Alpine Trail E - 2023

Marin Alpine Trail E
$3,379.99
$4,499.99
Color:
Gloss Blue/Black
Please select options Unavailable

Details

The Marin Alpine Trail E takes all the greatness of our longest travel, most aggressive enduro platform to make our most capable eMTB to date.

Sizes:
SmallMediumLargeX-Large
Head Tube Angle 63 63 63 63
Head Tube Length (mm) 100 110 120 130
Seat Tube Angle 78 78 78 78
Seat Tube Length (mm) 390 400 425 430
Top Tube Effective (mm) 575 597 619 641
BB Height 340.5 340.5 340.5 340.5
BB Drop 28 28 28 28
Fork Offset (mm) - - - -
Stand Over Height 681.6 681.4 686.8 689.8
Wheel Base 1215 1239 1264 1288
Chain Stay (mm) 435 435 435 435
Seat Post Diameter 30.9 30.9 30.9 30.9
Stack 613 622 631 640
Reach 445 465 485 505
Handlebar Width (mm) - - - -
Stem Length (mm) 35 35 35 35
Crank Length 160 160 160 160

Specs

Frame Series 4 Alloy Frame, 150mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Fork X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
Rear Shock X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount
Wheels Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible, Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub BodyShimano MT-410B, 110x15mm, centerlock Disc, 32H
Rims Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hubs Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub BodyShimano MT-410B, 110x15mm, centerlock Disc, 32H
Spokes 14g Black Stainless Steel
Tires Front: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible
Rear: Vee Tire Co Crown Gem, 27.5x2.8", TACKEE Compound , Tubeless Compatible
Crankset Shimano EM600, 160mm Length
Shifters Shimano Deore, 10-Speed, I Spec EV
Rear Derailleur Shimano Deore, 10-Speed
Cassette/Freewheel Shimano Deore 10-speed 11-46T
Chain KMC X-10E, Silver
Brakes Shimano MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor, Shimano MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor w/ Speed Sensor,Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
Brake Levers Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5° Up, 9° Back
Tape/Grips Marin Grizzly Lock On
Stem Marin 3D Forged Alloy, 35mm
Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
Saddle Marin E-MTB Saddle
Pedals Marin MTB Plastic
Accessories & Extras Shimano CS-EM800 Chain Guide
Motor Shimano EP6, 250 W, 85Nm
Battery BT-8035L, Internal 504Wh
Charger Shimano Battery Charger EC-E6002

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Blue/Black / Small 843346120786 735964001 735964001
Gloss Blue/Black / Medium 843346120793 735964002 735964002
Gloss Blue/Black / Large 843346120809 735964003 735964003
Gloss Blue/Black / X-Large 843346120816 735964004 735964004
