Tern Eclipse P20

Tern Eclipse P20
This item is currently not available.

Details

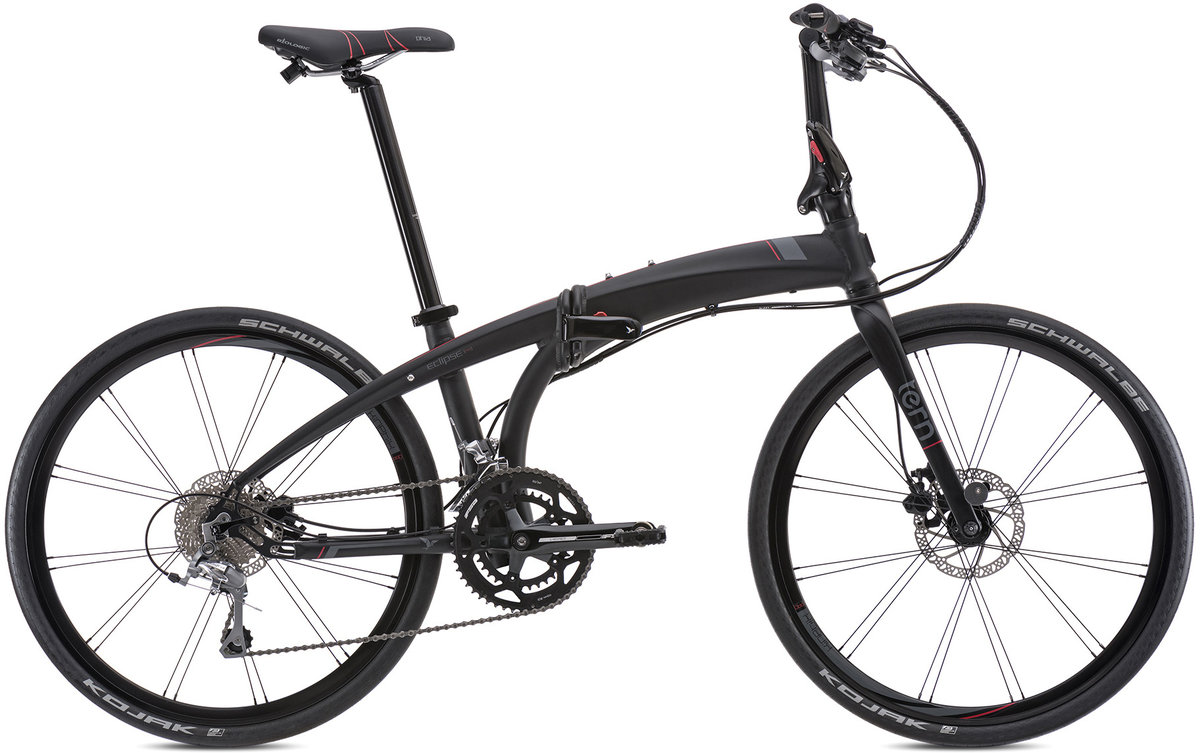

The Eclipse P20 is a high-performance road bike that folds down fast. With custom 26" Rolf Paired Spoke wheels, a 250 mm Physis 3D handlepost, and performance-tuned frame geometry, the Eclipse P20 is engineered for speed. It sports a stealth black finish and hydraulic disc brakes.

- Kinetix Pro Disc 26" wheels with patented Rolf Paired Spoke design
- Shimano Tiagra drivetrain for 20 speeds and precise, responsive shifting
- Tektro Auriga hydraulic disc brakes for all-weather stopping power
- Adjustable VRO handlebar stem to fine tune your ride position
- High performance Kojak road tires with puncture protection
- Folds compactly in 10 seconds for storage and transport

Bells & whistles
- Bell: Pitch, brass
- Kickstand: Premium center mount
- Clip system: Magnetix 2.0
- Luggage socket: Yes
- Rear light: Biologic taillight

WARNING: This product can expose you to chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Specs

Frame Tern Eclipse, hydroformed 7005-Al w/ smooth TIG welding, 3 patented technologies
Fork Tarsus, 6061-AL, hydroformed
Headset Flux, cartridge bearings, Physis integrated
Rims/Wheels Kinetix Pro X, 24H, 6061-T10 aluminum, patented Rolf Paired Spoke design
Hubs Kinetix Pro Disc, 24H
Spokes Double-butted 18/10 stainless, Sapim Polyax nipples
Tires Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Crankset FSA Vero
Chainrings 50/34T
Bottom Bracket Cartridge, sealed bearings
Chain KMC X10
Front Derailleur Shimano Tiagra
Rear Derailleur Shimano Tiagra
Cassette/Rear Cogs Shimano Deore, 11-32T, 10 spd
Shifters Shimano Tiagra trigger, 2x10 spd
Handlebars Kinetix Comp, 6061-Al, VRO butted
Tape/Grips BioLogic Arx
Stem Syntace VRO, adjustable
Brake Levers Tektro Auriga, hydraulic disc
Brakes Tektro Auriga, hydraulic disc
Pedals LiteForm QR, alloy body, QR right/standard left
Saddle BioLogic Phia, PrimeGel padding
Seat Post SuperOversize, 6061-Al, forged clamp

* Subject to change without notice.
