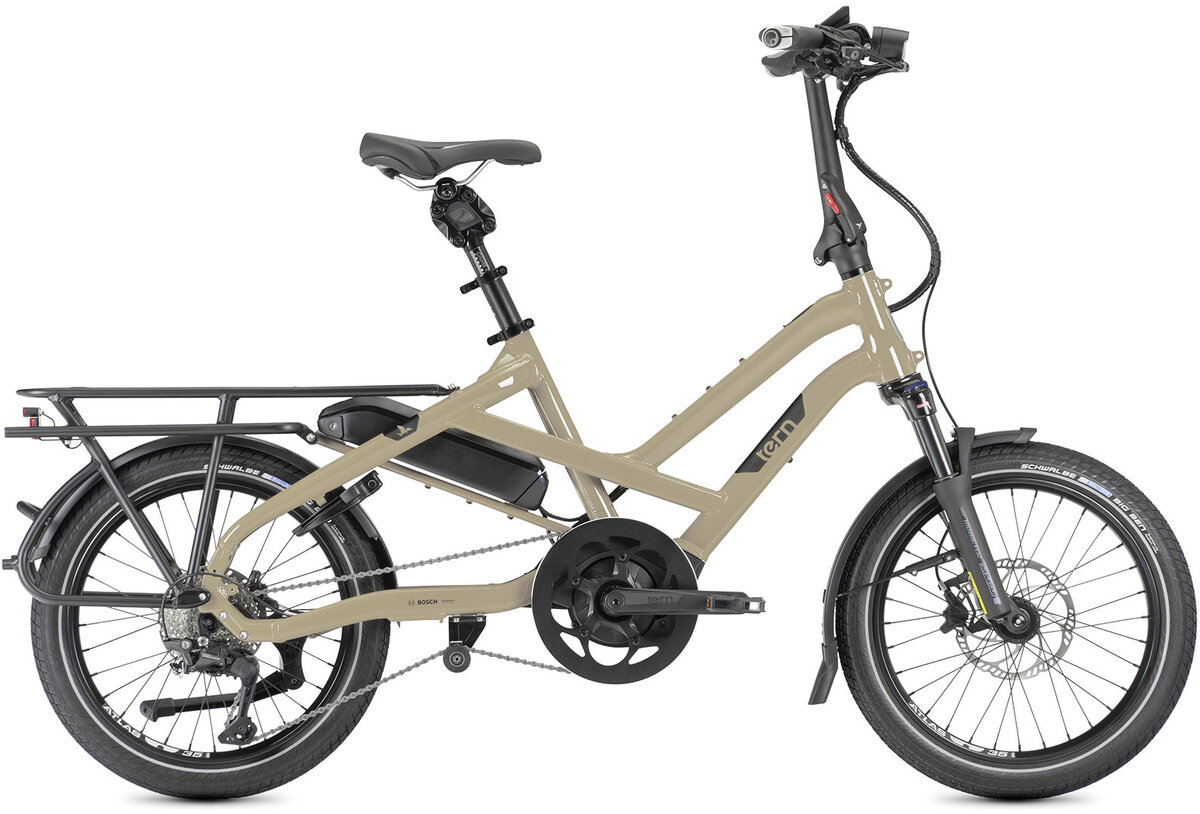

Tern HSD S11

Tern HSD S11
Color: Dune
Size: One Size
Please select options Unavailable


- Bosch Performance Line Sport motor, pedal assist up to 28 mph (Class 3)
- Bosch Kiox display
- 545Wh battery for a range of up to 74 mi
- Custom Suntour suspension fork
- 11-speed Shimano Deore XT Shadow+ derailleur
- Magura hydraulic disc brakes
- Abus keyed-alike frame lock
- Fits riders from 4'11" to 6'5"
- Fits one Thule Yepp Maxi, Yepp Nexxt Maxi, or Bobike GO Maxi child seat-no adapters needed

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to


Frame Tern HSD, 6061-AL, patented design, EFBE Tri-Test approved: 170 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE Tri-Test approved: 170 kg
Rims Tern Atlas H, wide 35 mm
Hubs Novatec, sealed cartridge bearing, disc
Spokes Stainless steel, double-butted
Tires Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Bottom Bracket Motor integrated
Shifters Shimano Deore XT, 1 x 11 spd
Rear Derailleur Shimano Deore XT
Cassette/Freewheel 11-36T, 11 spd
Chain KMC 11 spd, EPT corrosion resistant coating
Brakes Magura MT5, hydraulic disc
Rotors 180/160mm
Brake Levers Magura, hydraulic
Handlebars Tern Sweep, 6061-AL, Tern Andros adapted
Tape/Grips Ergon
Stem Tern Andros, adjustable, forged construction, patented technology
Headset Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Seatpost Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Saddle Tern HSD
Pedals Urban with non-slip surface, sealed bearings
Accessories & Extras BELL: Aluminum KICKSTAND: Ursus, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Tern Valo Direct, 190 lumens REAR LIGHT: Herrmans H-Trace, for eBike FENDERS: SKS, stainless hardware RACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting ACCESSORY: ABUS 5650L, keyed-alike with Bosch battery
Motor Bosch Performance Sport, 340% Assist, 70 Nm Torque, max speed 28 mph (US)
Battery Bosch PowerPack 540
Controller/Display Kiox 300 color display that automatically activates eBike Lock when removed from the bike
Charger Bosch Standard Charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Dune / One Size 810067161343 12-91-85 12-91-85
